Frequency Tracking Ultrasonic Welding System

Ultrasonic Welding System
(Real-Time Resonance Frequency Tracking)

Jieda ultrasonic welder, real-time resonance frequency tracking type is suitable for welding small plastic components such as ziplock bag, plastic toys, wine caps, charger shells and more. This welding system is widely used in machinery, auto parts, fishing gear, packaging and other industries.

When the ultrasonic wave acts on the contact surface of thermoplastic plastic, it will produce high frequency vibration of tens of thousands times per second. Through the vibration and heat, two parts are bonded under pressure and the weld strength can be close to the strength of the raw material. Our ultrasonic welding machines are CE, FCC certificated.

Two types of ultrasonic real-time resonance frequency tracking type welders are available:

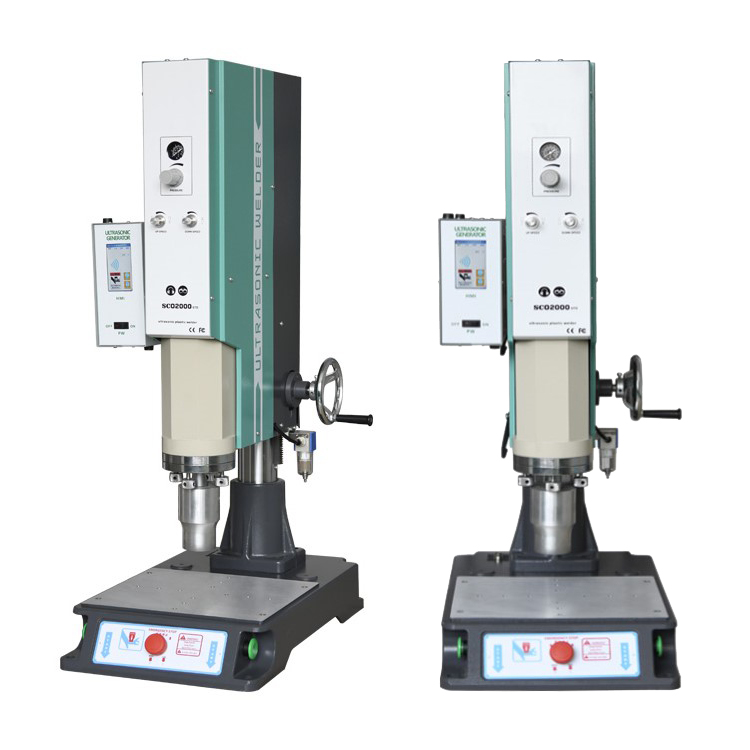

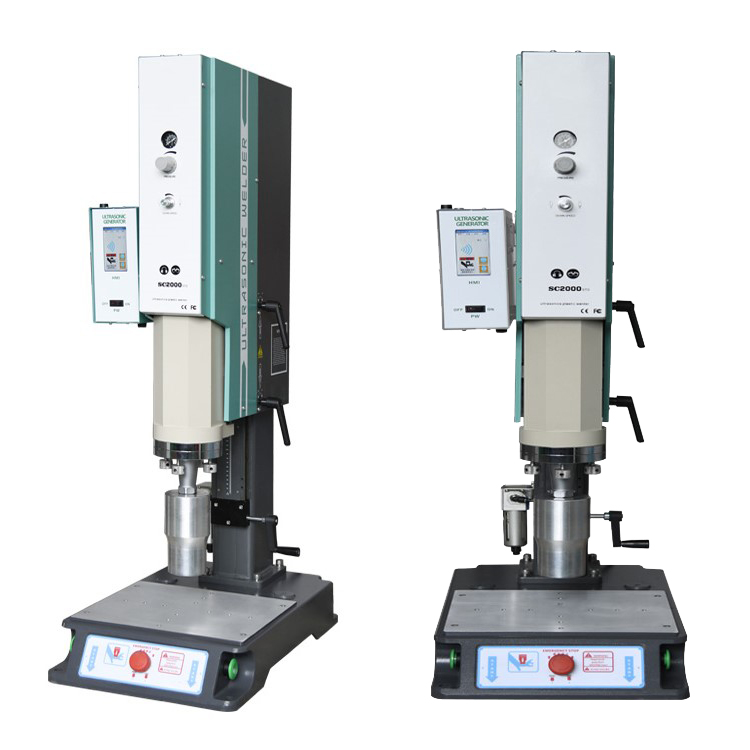

Digital Round Type Ultrasonic Welder
Round type ultrasonic welding machine is a universal type welding machine suit for general condition welding.

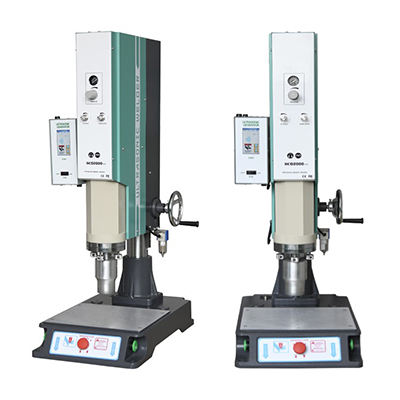

Digital Box Type Ultrasonic Welder
Box type ultrasonic welder features high precision welding, suit for the special welding requirement.

Welding area: φ170mm /φ220mm /φ300mm
Welding head stroke: 30-125mm
Machine stroke: 275~455mm
Operation switch: Synchronous dual start, emergency break button at front, external switchs are optional
Power: 2000W/2600W/3200W
Air pressure: >0~7Bar
Frequency: 20 k/15kHz
Input voltage: AC220V
Output time: 0.01-9.99s
Press size: 635*400*1450mm
Digital generator size: 412*320*118mm
Press net weight: 68kg
Digital generator weight: 10kg

Applications

Materials: acetal, ABS, nylon, acrylic, PC/PP, etc.
Industries: electronics, auto parts, stationery and toys, medical, machinery, fishing tackle, etc.

Features

Full-color fast response touch screen
Real-time frequency automatic tracking, easy for automatic control
30-125mm stroke cylinders are interchangeable, flexible according to the product
Welding amplitude 10%-100% adjustable (1% accuracy) amplitude compensation
Ac190v-240v voltage fitness, 20% higher than the rated output power
The entire machine is CNC reinforced with heavy pressure casting, giving it a robust rigidity and a pleasing appearance
Easy to operate with four-point and easy to adjust the plastics
Synchronous dual start button and emergency break button at front
