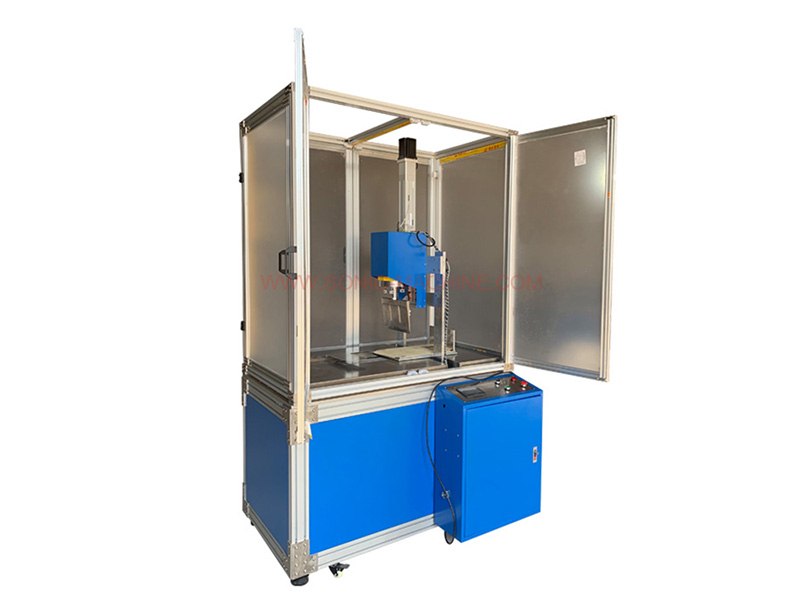

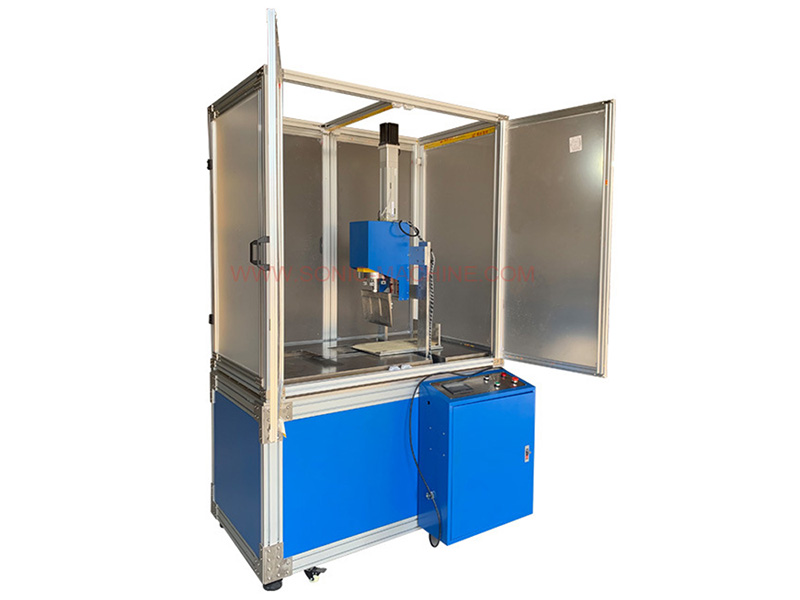

Ultrasonic Cutting Machine for Thermal Pad

Frequency: 15 KHz
Power: 2600W
Voltage: 220V
Vibrating head system : Cool system
Control system: PLC
Slicing thickness: 0.3mm-1 mm +/-0.03mm
Material Size: 280 (L) mm*50 (H) mm
Overall dimension: 830mm*1200mm*2050mm
Net weight: 220KG

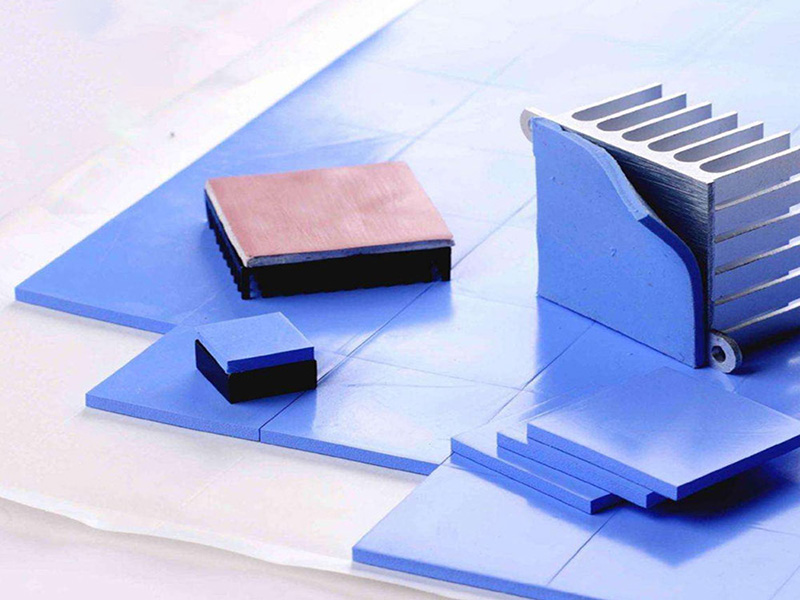

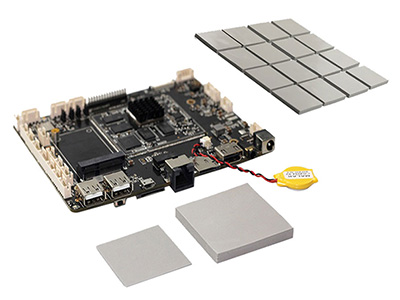

Samples

Description

This ultrasonic cutting machine is designed particularly to cut silicone rubber into sheets, which is suitable for production of thermal conductive silicone pads for cell phones, computers and electronic components. The ultrasonic cutter uses ultrasonic wave energy at a high frequency to achieve quick cutting.

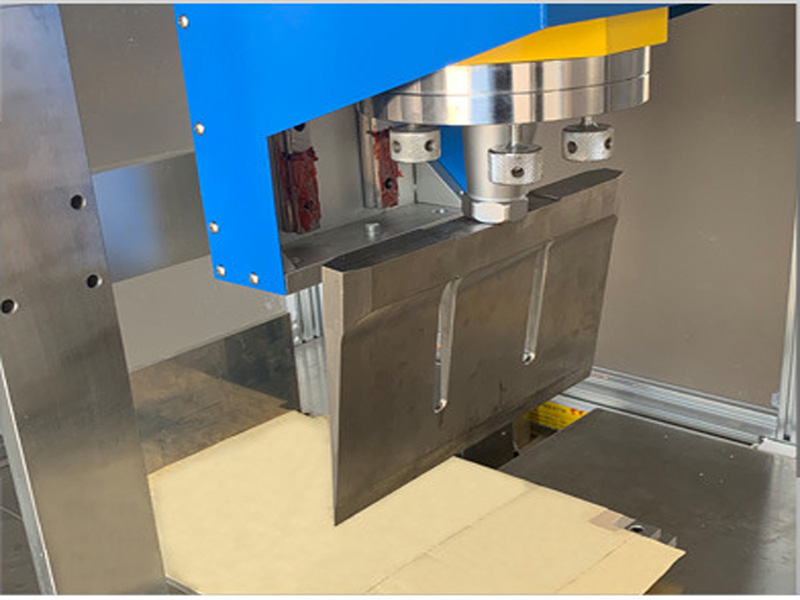

The titanium alloy cutting blade can create a smooth cut kerf without fraying and deformation, while prevent the materials from being attached on the blade. Touch screen control interface provides operator with easy operation, as well as simple adjustment of cutting size and speed.
The ultrasonic rubber cutter is capable of continuous cutting of materials with high cutting accuracy, work efficiency and reduced cutting scraps.

Features

It can be used for 5G cell phone heat conduction, heat dissipation silica gel slice, computer electronic components silica gel slice, new material slicing equipment. It is the equipment that it uses high frequency wave energy’s vibration to cut quickly.

Titanium alloy cutting blade is featured by higher sharpness and improved wear resistance, the cut edges of material will not be carbonized (blackened) or deformed;

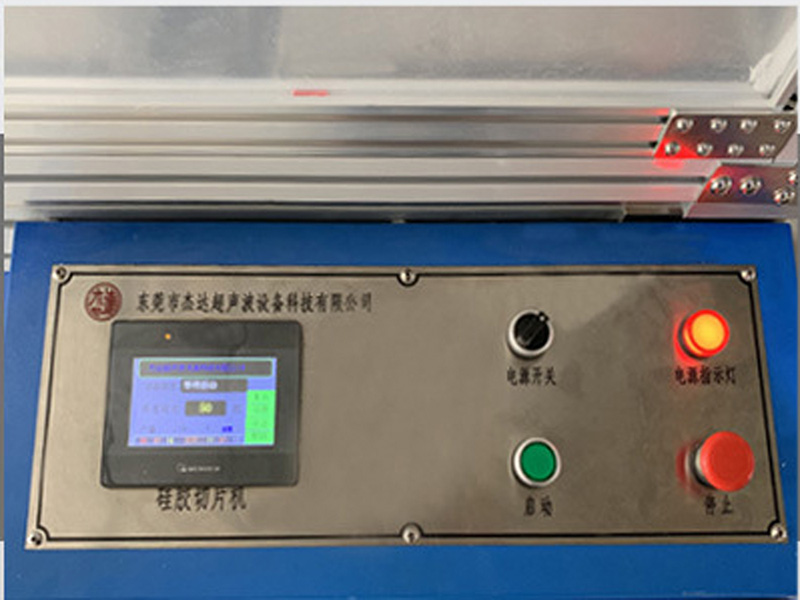

Reliable PLC control system with touch screen, cutting size and speed setting can be easily achieved;

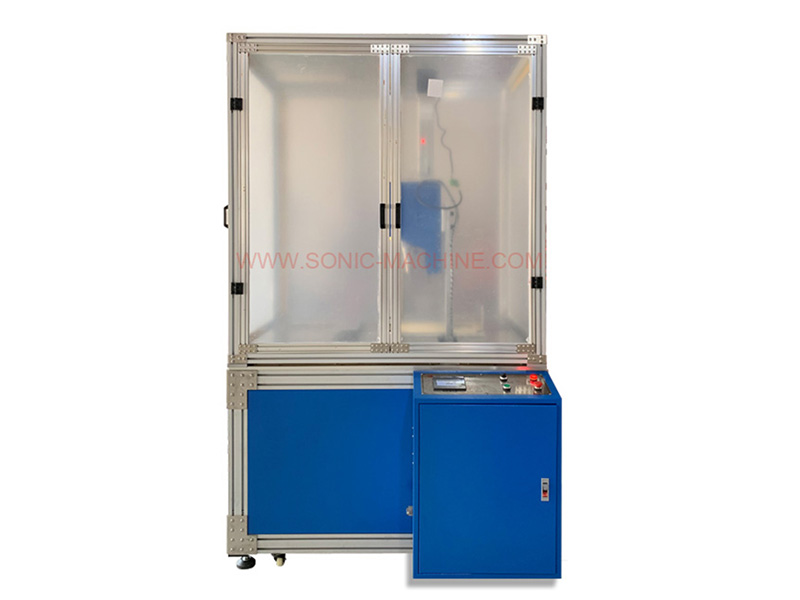

Compact structure provides superior look and allows to be easily transported, the protective cover ensures a safe operation;
Imported photoelectric sensor implements automatic detection and alignment, guaranteeing precise cutting thickness and quantity;
