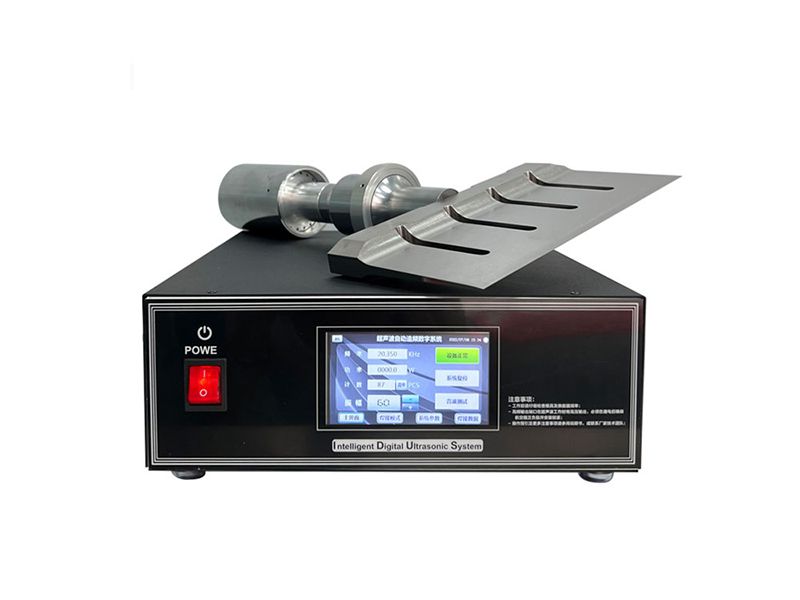

Ultrasonic Cutter

Frequency: 20KHz-40KHz
Blade width: 51-460MM
Coating: Selectable
Blade material: Titanium alloy
Ultrasonic generator: Auto-tuning generator
Ultrasonic converter: Piezoelectric ceramic
Ultrasonic booster: Built with durable materials

This ultrasonic cutting machine can be used for cutting a whole variety of different materials, be it food or rubber. As for food, the cutting machine is able to cut sticky and chewy one without causing deformity and crushing, which is definitely mission impossible for conventional cutting solutions. With regard to rubber, the ultrasonic cutter can cut in a frictionless way.

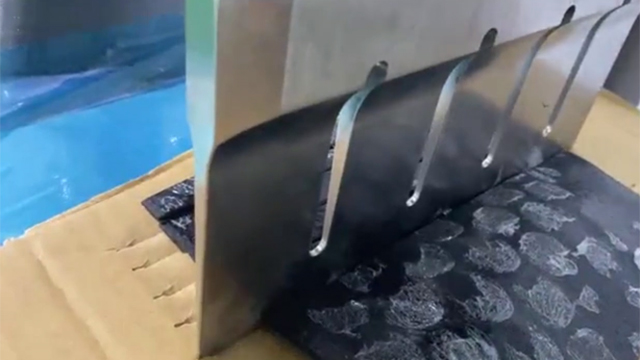

Videos Show

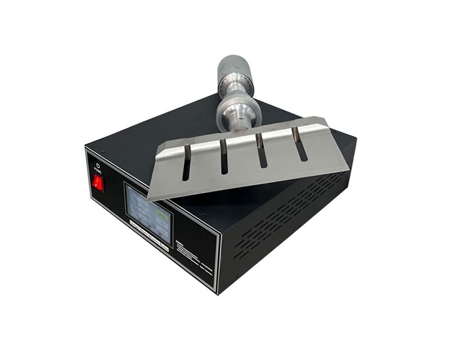

Ultrasonic Cutter

This ultrasonic cutter can cut food in a smooth way, without causing crushing, displacement or deformity, which is why it becomes a smash-hit in the cutting industry. The cutter is applicable for a range of food, such as the soft one, hard one, frozen one or hot one. It can also smoothly cut desserts, dairy products, cheeses, meat products and products with fat, carbohydrate and chocolate.

This cutter can cut food into different shapes—slice, triangle, rectangle and circle that is equally divided. When it comes to multi-layer food, displacement or color-changing will be avoided.

Ultrasonic cutter is applicable for rubber, silica gel, plastic, metal plate and cloth.

Our ultrasonic cutter cuts and slices food with knives that vibrate at high frequency. It can be used without much effort and will not cause damages to materials during the cutting. Our cutter is applicable for compound materials, such as silica gel, rubber, resin, nonwoven fabric and thin films. After the cutter cuts materials, the cutting surface is nearly frictionless. During the cutting, displacement and crushing will be avoided.

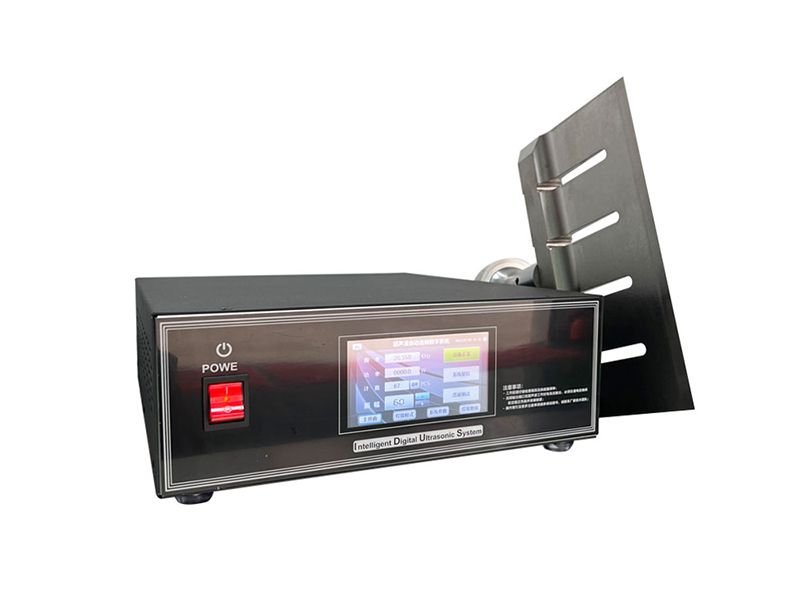

Ultrasonic cutter consists of an ultrasonic generator, a converter, a booster and a blade.

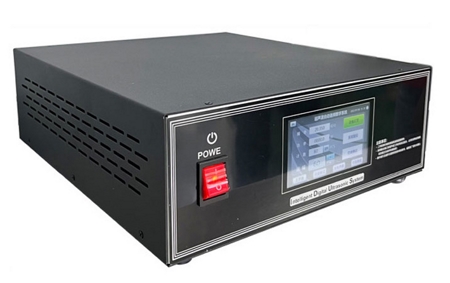

Ultrasonic generator works by converting utility power into high frequency and high voltage electricity. It will be transmitted to converter, which will convert the electricity into ultrasound. The converter will move back and forth vertically and the frequency of the movement is equivalent to that of the high voltage electricity that powers the generator.

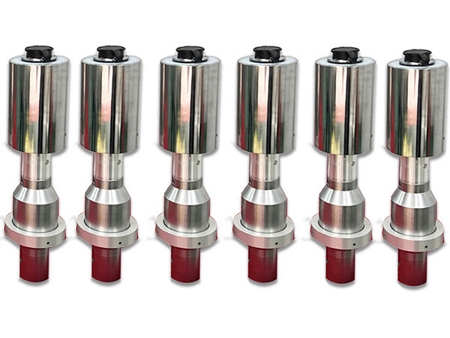

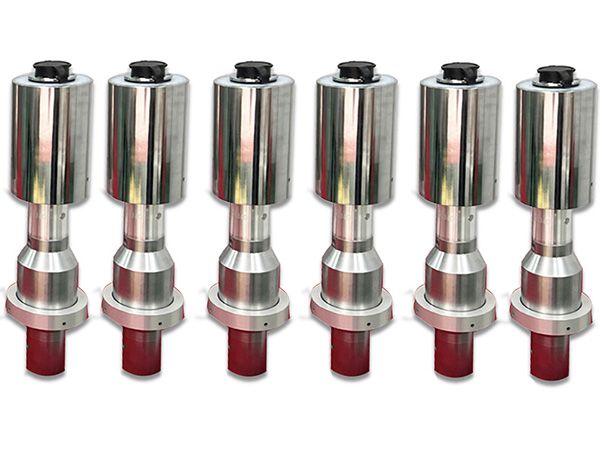

Converter translates electricity into ultrasound and then sends it to the next part without much consumption.

Ultrasonic booster magnifies the amplitude of the ultrasound.

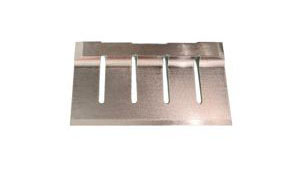

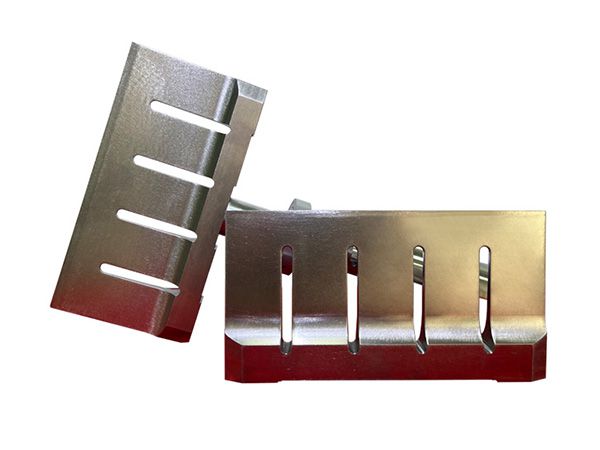

Ultrasonic blade magnifies the amplitude to an even larger extent. The blade releases ultrasound and gathers it around. Without much effort, the blade can slice or cut materials.

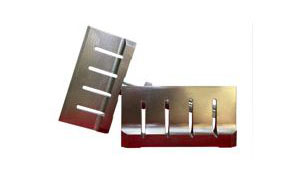

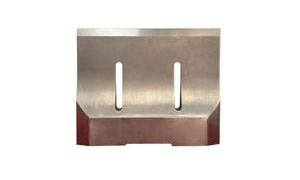

Multiple blades are available
