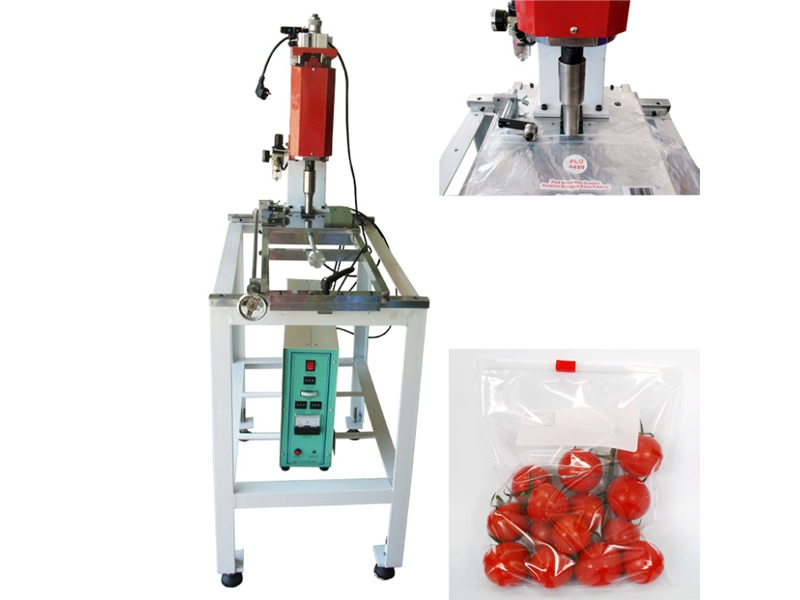

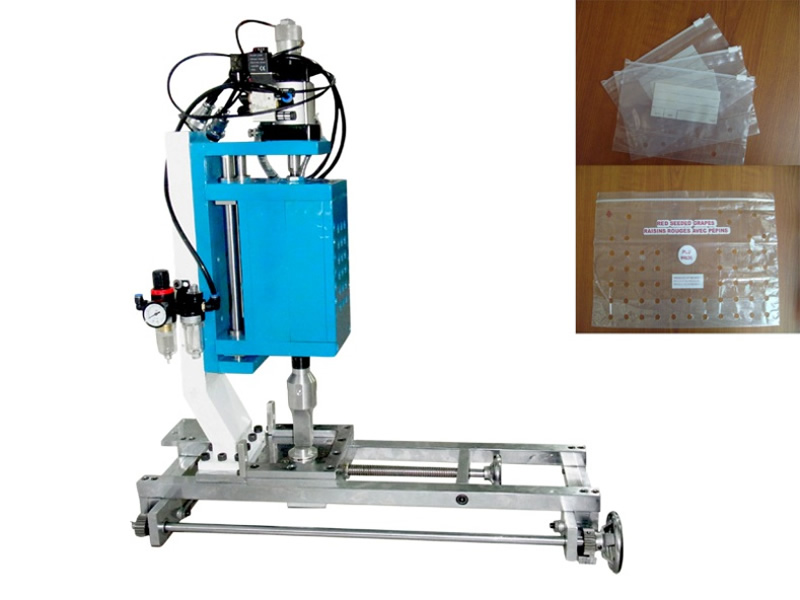

Handheld Ultrasonic Spot Welder

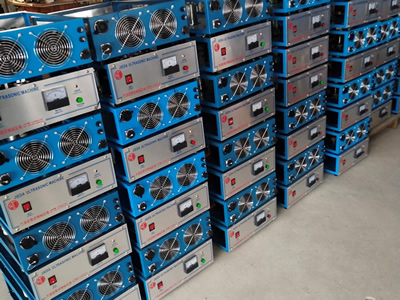

Ultrasonic Generator, JD Series

Model: JD-20G/ JD-15G
Output power: 1000w-2600w/ 2600W-4200W
Frequency: 20KHZ/ 15KHZ
Input voltage: AC220v
Welding head stroke: 10mm-100mm
Vibration head cooling system: Air cooling
Oscillation system: Self-excited oscillation
Output time: 0.01-9.99S
Air pressure: 1-7bar
Power Output adjustment: 1-4 Gear

Applications

Paper cup making machine
Nonwoven bag making machine
Nonwoven surgical cap making machine
Nonwoven bouffant cap making Machine
Nonwoven shoe cover making Machine
Nonwoven ultrasonic plastic welding machine
Ultrasonic sewing machine
Three layers bag making machine

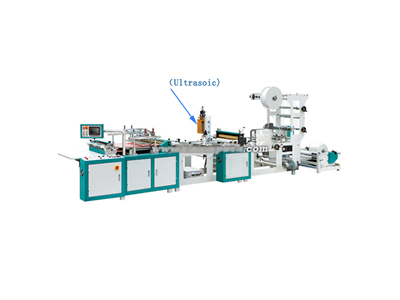

Plastic bag making machine
Face mask machine
Laminating machinery
and more…

Description

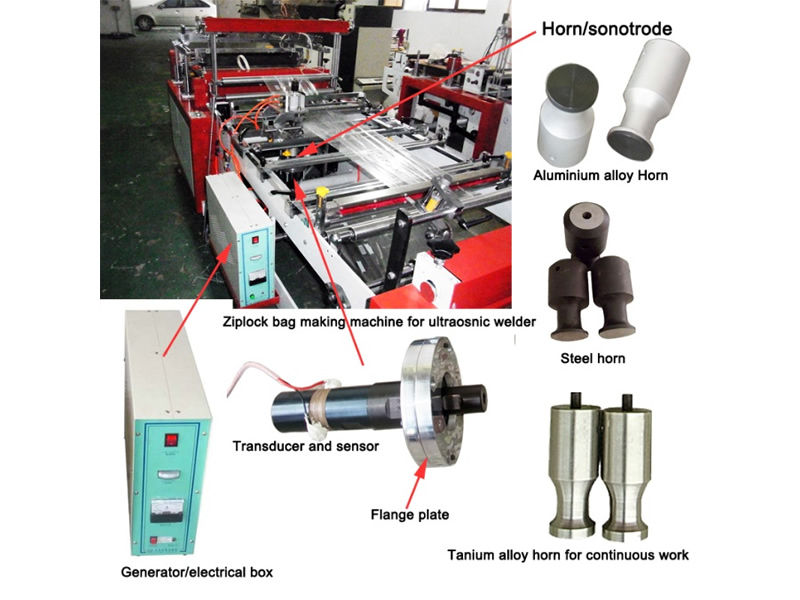

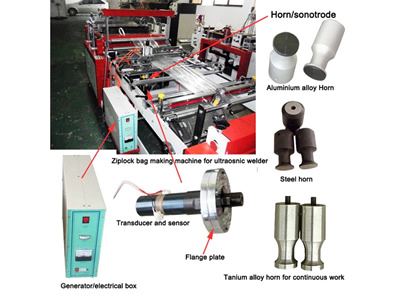

The ultrasonic generator is integrated with an ultrasonic transducer and horn, which constitutes a whole ultrasonic system. This ultrasonic system is the most important part of ultrasonic welding machines or cutting machines.

The ultrasonic transducer will transfer high-frequency electrical energy produced by ultrasonic generator into high-frequency mechanical vibration, which will work on plastic products by Booster. Ten of thousand times friction each second between one plastic product and the other will be generated by high-frequency mechanical vibration. In this case, the contact area between plastic products will be fused promptly.

Features

Adjustable parameters: various parameters including power, amplitude, operating time can be adjusted according to customer’s requirements;
Protection system: Ultrasonic generator will automatically stop and actuate the alarm when the system is working in an improper operating environment, protecting the equipment from being damaged;
Support continuous working: adopts the principle of self-excited continuous wave, realizing continuous work while ensuring production capacity;

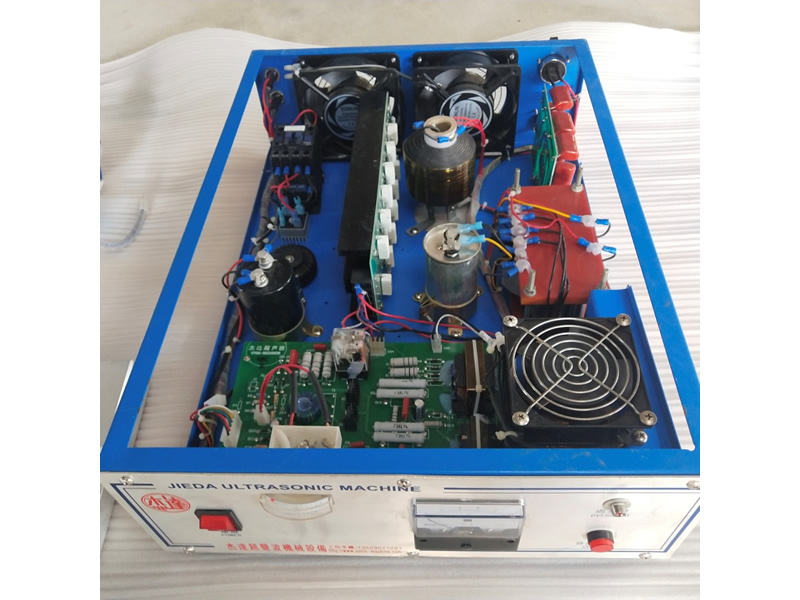

Reasonable design: adopts imported electronic components, arranged neatly;
Good heat dissipation system: it can reduce internal interference and extend the service life of generator;
