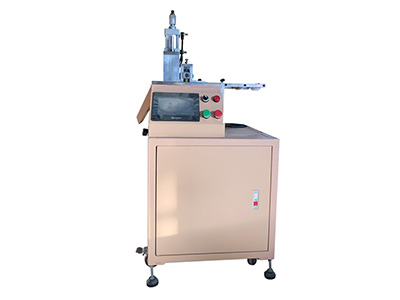

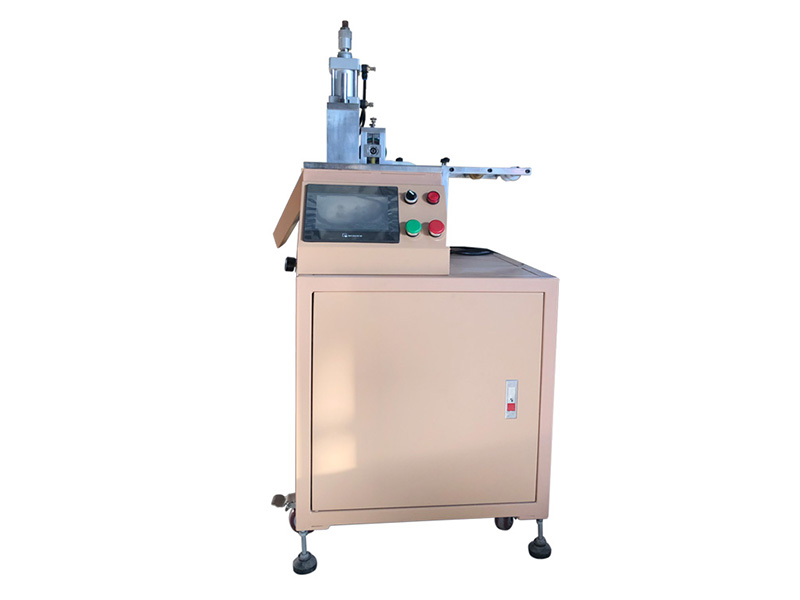

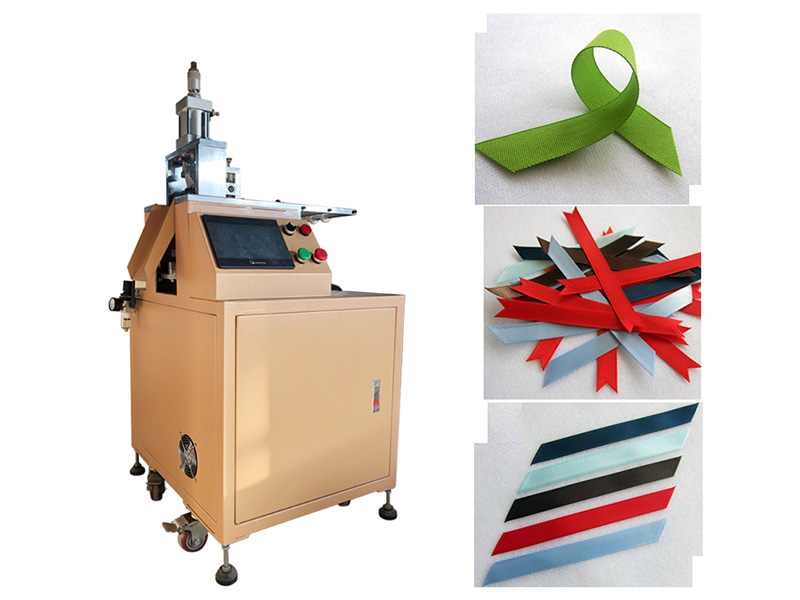

Ultrasonic Strip Cutting Machine

Cutting length: 1-1000mm
Cutting width: 1-70mm
Cutting speed: 500pc/min(50-60mm)
Output power: 2200W
Ultrasonic frequency: 20KHz
Input voltage: AC220V
Dimension: 960*660*1330mm
Weight: 160kg
Cutting shapes: Customizable

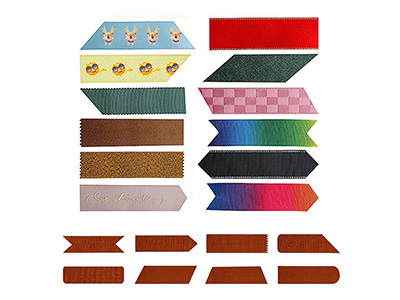

Samples

Description

Ultrasonic strip cutting machine is an automatic cold knife strip cutter that features micro-computer digital controller and automatic cut counting unit to perform high speed precise cutting operation. A major advantage of ultrasonic cutting is to provide smooth and clean sealed edge, efficiently solving the problems of burning, scorching and blackening which are commonly found in conventional hot cutting process. In addition, the ultrasonic strip cutter can keep cut edges from fraying, unraveling or other similar degradations.

Applications

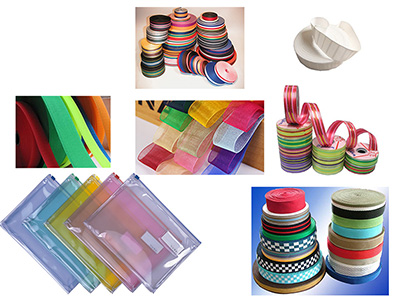

Materials: straps, ribbons, hook & loop strips, webbing, cloth strips, belts, cords, satin ribbons, PVC belts, nylon webbing, etc.

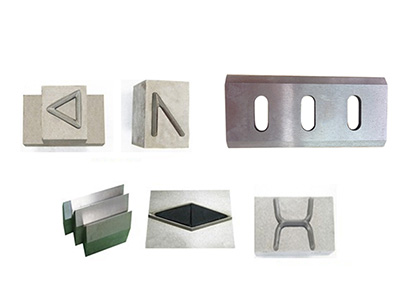

Cutting shapes: straight cut, oblique cut, dovetail, wave, round, and more shapes;
Industries: garments, luggage, decor crafts, packaging, outdoor supplies, etc.

Features

Ultrasonic cutting provides clean and smooth cut edge without fraying, unraveling and color changing;
Cutting length and speed are easy to adjust, and the cutting sonotrodes are simple to assembly;

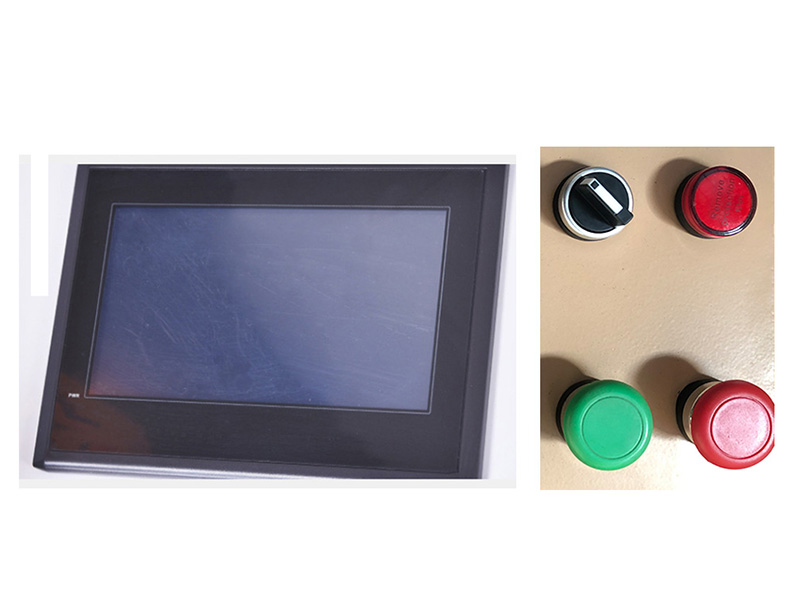

PLC control screen with automatic material feeding and cut counting, ensuring high precision, fast running and easy operation;

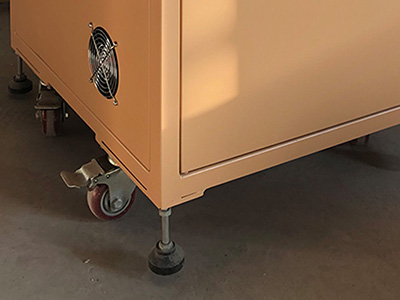

Compact structure, small footprint and lightweight allows the machine to be easily transported;
Special structure design offers constant pressure which efficiently improves cutting stability

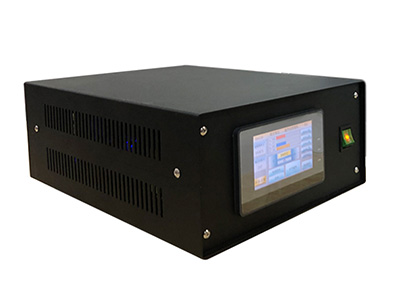

Ultrasonic generator clearly displays numerical values, easy to use;
