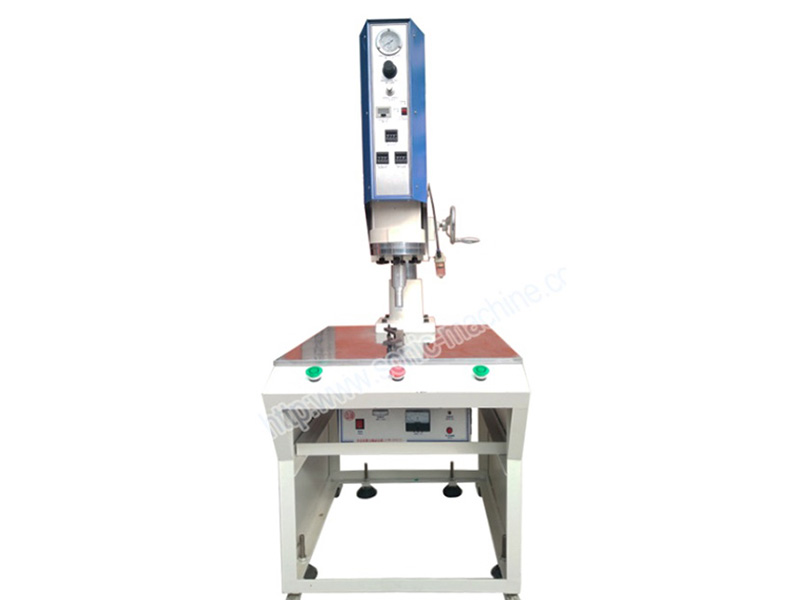

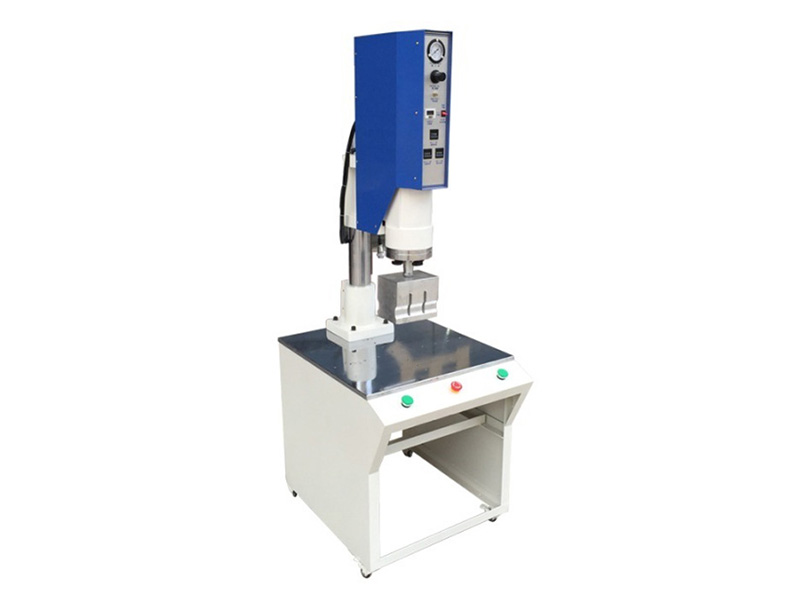

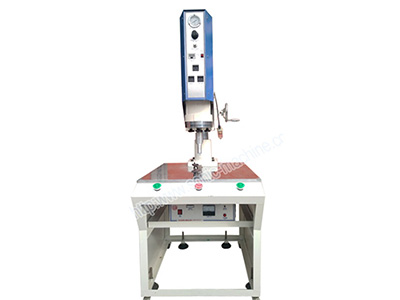

Ultrasonic Plastic Welding System

Ultrasonic Welding System (Ultrasonic Plastic Welding)

Welding area: φ150mm/φ190mm/φ210mm
Welding head stroke: 75mm
Oscillation system: Self-excitation oscillation
Cooling system: Air cooling
Output power adjustment: 1-6 level adjustable
Output power: 1500W/ 2000W/ 2600W
Air pressure: 1-7bar
Frequency: 20 KHz/ 20KHz/ 15KHz
Input voltage: AC220V
Output time 0.01-9.99S
Dimension: 400×660×900mm
Net weight: 110kg/ 120kg/ 160kg

Applications

Materials: Acetal, Cellulosics, ABS, etc.
Industries: toys, electronics, automotive, food, packaging, etc.

Description

This ultrasonic welding system provides an efficient and fast method for joining thermoplastic parts together without adding any adhesives or solvents. The ultrasonic welding technology can create a strong and hermetic weld between two parts, and it is widely used for a variety of applications due to its features of low heating source consumption, easy operation, fast welding and high efficiency.

Features

Ultrasonic converter is made of piezoelectric ceramics, providing stable mechanical vibrations;
A adjustable limit is designed to ensure uniform welding, and improve product pass rate;
Overload protection circuit (current /frequency) adopts high quality components from European, American and Japanese companies;
Three-position DIP switch is used for precise time setting with least count of 0.01 second, featuring easy adjustment and low failure rate;
